location：Home-Support-Cell Counter without plastic slides-Halo Counter Quick Start Guide
Halo Counter Quick Start Guide
Manual Introduction

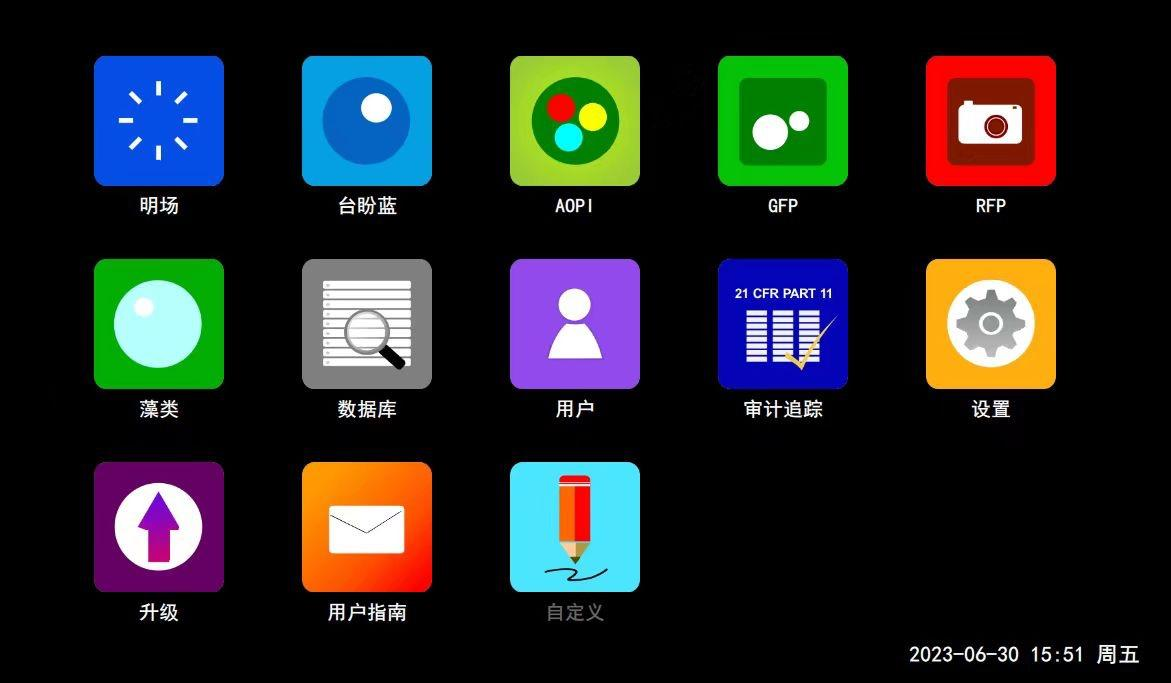

1. Power and Switch on the instrument, enter into the Halo Counter home screen.

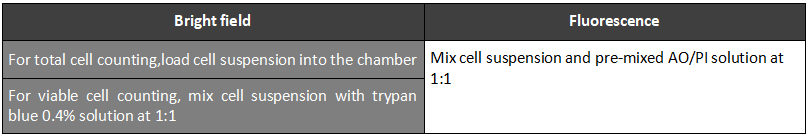

2. Sample preparation and loading.



● For normal use(1e5~3e7), load 20ul mixed sample into the chamber.

● For Lower concentration(1e3~1e5), load 40ul mixed sample into the chamber.

● For smaller cell such as Alage, Yeast, E.coil, load ~5ul mixed sample into the chamber.


                                                                            image.png  image.png

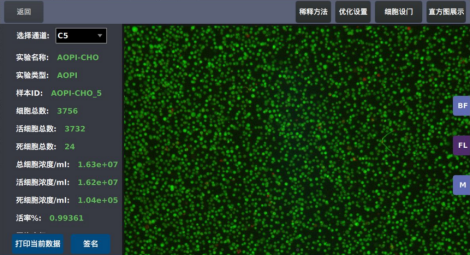

5. View and Save Results



6. Toolbar

● Dilution Calculator：enables the user to define target cell number or density and culture volume. The counted result will automatically provide instructions to correctly dilute cultures to reach the desired target.

● Optimize Settings：Once a sample has been counted, a subset of the protocol parameters can be further adjusted to optimize the result. That value including Minimum Diameter and Maximum Diameter;Threshold.

● Cell Size Histogram：View cell size distribution and cluster histogram
